Flange Y Strainer DN 40 PN16/40 Steel Strainer 1mm- صفاية حديد حرف واي ماش 1مم Dn150 pn 16 <
10.725,00 EGP
Ask for More Info
Stainless Steel (316) Ball Valve – Full Port 1,000 PSI (WOG)Stainless Steel Ball Valve –
Full Port – 1,000 WOG (PSI) Heavy Duty For Water, Oil, And Gas With Blue Locking Handles, NPT
• S.S. 316 investment casting body
• Working Pressure of 1,000 PSI (WOG)
• Minimal pressure drop due to large full-size ports
• Suitable for full range of liquids and gas
• Temperature range: -60 to 450 Degrees F
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• NPT threaded ends to ANSI B1.20.1
• Heavy duty locking handles with blue vinyl insulator
500 in stock
Description

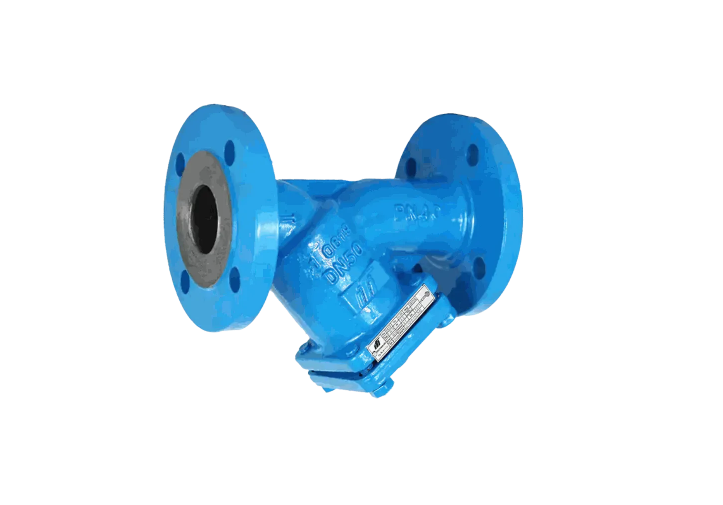

Flange Y strainer DN 40 steel
Flange connection PN16-40, type B1, EN 1092-1, Construction length according to EN 558-1, series 1, Body/cover made of steel (1.0691) GS-C25 RAL 5015, strainer made of stainless steel (SS304), Mesh size Ø1 mm, Working temperature range -10°C to +400°C, approval AD2000 A4
Filter basket :Stainless steel (1.4301)
Nominal width :DN40 – 1 1/2” inch
Connection :Flange PN10 , Flange PN16 , Flange PN25 , Flange PN40
Body:Steel
Face to Face length :EN 558-1 series 1
Mesh sizes :1mm
Temperature range :-10°C bis +400°C
Certificate :AD2000-A4
